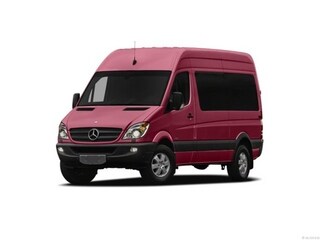

The standard features of the Mercedes-Benz Sprinter 2500 Standard Roof include 3.0L V-6 188hp engine intercooled turbo, 5-speed automatic transmission with overdrive, 4-wheel anti-lock brakes (ABS), air conditioning, 16" steel wheels, ABS and driveline traction control, electronic stability, power mirrors, power windows, power locks, and a remote keyless entry. (en)

Quick Stats

Specifications

• Convenience Features
• Entertainment Features
• Warranty
• Seats and Trim
• Specs and Dimensions
• Body Exterior
• Powertrain
• Safety and Security
• Suspension/Handling
• Lighting, Visibility and Instrumentation

• Air conditioning
• Residual heat recirculation
• Power windows
• 1-touch down
• Remote keyless entry
• Illuminated entry
• Tilt steering wheel
• Telescoping steering wheel
• Front beverage holders
• Overhead console
• Driver door bin
• Passenger door bin

• AM/FM radio
• CD player
• MP3 decoder
• Speakers - 13

• Basic warranty - 36 months/60,000km
• Powertrain warranty - 60 months/100,000km
• Corrosion perforation warranty - 60 months/160,000km
• Roadside assistance coverage - 60 months/100,000km

• Max seating capacity - 12
• Front seats - bucket
• Driver seat mounted armrest
• Passenger seat mounted armrest
• Rear seats - bench
• 3rd row seats - bench
• 4th row bench seat

• Engine displacement - 3.0 L
• Engine horsepower - 188hp @ 3,800RPM
• Engine torque - 325 lb.-ft. @ 1,400RPM
• Engine bore x stroke - 83.0mm x 92.0mm (3.27" x 3.62")
• Compression ratio - 18.00 to 1
• Payload - 1,270kg (2,800lbs)
• Curb weight - 2,610kg (5,754lbs)
• GVWR - 3,880kg (8,554lbs)
• Towing capacity - 2,268kg (5,000lbs)
• Exterior length - 5,910mm (232.7")
• Exterior body width - 1,993mm (78.5")
• Exterior height - 2,445mm (96.3")
• Wheelbase - 3,665mm (144.3")
• Turning radius - 7.3m (23.8')
• Interior cargo volume - 4,001 L (141 cu.ft.)
• Interior maximum cargo volume - 4,001 L (141 cu.ft.)

• Rear cargo - split swing-out
• Power door mirrors
• Heated door mirrors
• Bodyside mouldings

• Engine litres - 3.0
• Compressor - intercooled turbo
• Cylinder configuration - V-6
• Horsepower - 188hp @ 3,800RPM
• Torque - 325 lb.-ft. @ 1,400RPM
• Number of valves - 24
• Engine location - front
• Recommended fuel - diesel
• Transmission - 5 speed automatic
• Manual-shift auto
• Drive type - rear-wheel
• Fuel tank capacity - 100.0L

• 4 wheel disc brakes
• ABS brakes
• Brake assist
• Dual front impact airbags
• Ignition disable
• Electronic stability
• Traction control
• Adjustable head restraints - driver and passenger w/tilt

• Front wheel independent suspension
• Front anti-roll bar
• Rear anti-roll bar
• Power steering
• Front tires - 245/75QR16.0E
• Rear tires - 245/75QR16.0E
• Single rear wheels
• Wheel size - 16"

• Rear window defroster
• Tachometer
• Outside temperature display
• Low tire pressure warning
